Aluminium Joining Plate Bottom Silver
Aluminium Joining Plate Bottom Black
Zusammenbau v14 - Corner Support + Corner Bottom Plate
Aluminium Joining Plate Bottom Silver
Aluminium Joining Plate Bottom Black
Zusammenbau v14 - Corner Support + Corner Bottom Plate

Aluminium 3030 Joining Plate Bottom

€25,00 – €39,00 exkl. MwSt.

  • Dimensions: 118 x 118 x 19 mm
  • Material: EN AW 7075
  • Production: Precision CNC milling
  • Surface : (with minimal handling scratches)
    • Raw aluminium
    • Anodized black aluminium
  • Location: Made in Austria
  • System: Suitable for the RatRig V-Core
  • Note:
    • Fits all 3030 aluminium extrusions
    • Shall be used with rubber foot with metal insert 28*22*16.5mm
    • M6x16 mm screws and nuts needed
    • No screws or nuts included
  • Design: Credit goes to Dennis Jespersen (DJ_Designs) for an initial build
  • Shipping: 14.04.2023 in Europe
Filter löschen

Links from external vendors

Item Description Thumbnail Link

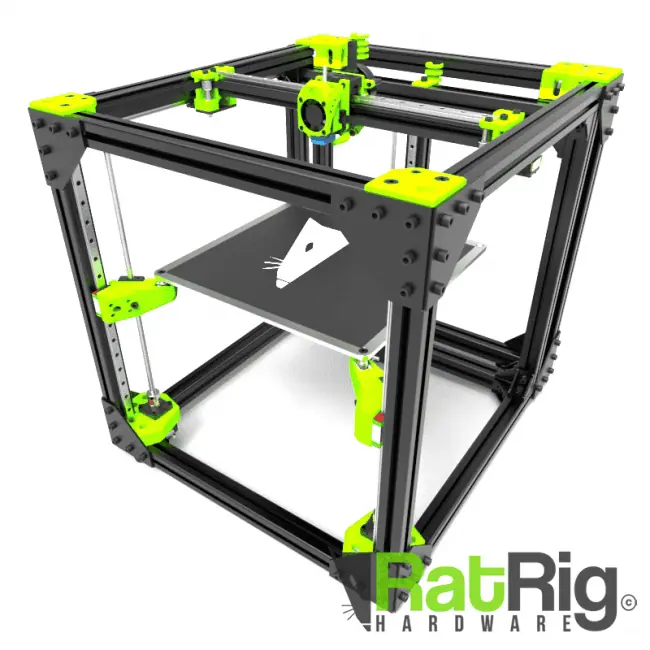

RatRig V-Core 3DPrinters CoreXY printers in different sizes and configurations available. Based in Portugal. Ratrig V-Core RatRig V-Core
V-Core Printed Parts ASA/PA12CF15 3D printed parts out of ASA or PA12CF for a standard V-Core 3.1. Based in France. Ratrig V-Core BRS Engineering
Z-Upgrade (Vcore 3.x) 3D printed parts out of ASA or PA12CF for a V-Core 3.1 or 3.0 with optional SFU1204 ballscrew upgrade for high precision printing. Based in France. Ratrig V-Core BRS Engineering
Open Front idlers V1 3D printed parts out of ASA or PA12CF for an open front based V-Core printer with leadscrews or SFU1204 ballscrews. Based in France. Ratrig V-Core BRS Engineering
L3VER M2 tensionner / Precision Motor Block 3D printed parts for decoupled motor mounts and belt tension system. Based in France. Ratrig V-Core BRS Engineering
BRS CF80 Filtration Filtration system with activated carbon + HEPA. Based in France. Ratrig V-Core BRS Engineering

Zusätzliche Informationen

Surface

Silver Raw, Black Anodized

Ähnliche Produkte

  • X-Gantry 562mm SilverX-Gantry 562mm Black
    Ausführung wählen

    X-Gantry 562mm for RatRig V-Core Wide Boy

    €60,00 – €74,00 exkl. MwSt.
    • Dimension: 562 x 20 x 20 mm
    • Weight: 109 g (vs. 259 g of original 2020 extrusion)
    • System: Suitable for the RatRig V-Core Wide Boy
      • MGN12 linear rails
      • MGN9 linear rails
    • Material: EN AW 6060 T66
    • Production: Precision CNC milling
    • Surface : (with minimal handling scratches)
      • Raw aluminium
      • Anodized black aluminium (batch 2)
    • Note:
      • Mounting of the linear rail with M3x8mm screws (not included)
      • Prices excl. VAT
      • Made in Austria
    • Shipping Batch 2: 14.04.2023 in Europe
    Ausführung wählen
  • Bed Plate Cast Tooling Plate 300 RatRig
    In den Warenkorb

    RatRig V-Core 3 – 300 Bed

    €220,00 exkl. MwSt.
    • Dimension: 329 x 329 x 8 mm (original 6 mm)
    • Material: EN AW-5083 cast tooling plate
    • Tolerance (of total length): +- 0.05 mm (22°C)
    • Magnets: 20 pieces with M3 screws (ISO 14581 M3)
    • QA Certificate: Created by a Mitutoyo CRYSTA-Apex V
    • Design: Credit goes to Wade Wendorf (Mandela Rose Works)
    In den Warenkorb
  • Corner Support SilverCorner Support Black
    Ausführung wählen

    Aluminium 2020/3030 Diagonal Support

    €25,00 – €39,00 exkl. MwSt.
    • Dimensions: 195 x 30 x 19 mm
    • Material: EN AW 7075
    • Production: Precision CNC milling
    • Surface : (with minimal handling scratches)
      • Raw aluminium
      • Anodized black aluminium (batch 2)
    • Location: Made in Austria
    • Note:
      • Fits all 3030 aluminium extrusions
      • Fits all 2020 aluminium extrusions
      • M6x12 mm screws and nuts needed
      • No screws or nuts included
    • Shipping Batch 2: 14.04.2023 in Europe
    • Design: Credit goes to Simon Vez (VzBot)
    Ausführung wählen
  • RatRig V-Core X-Gantry 522mm SilverRatRig V-Core X-Gantry 522mm Black
    Ausführung wählen

    X-Gantry 522mm for RatRig V-Core 400

    €55,00 – €69,00 exkl. MwSt.
    • Dimension: 522 x 20 x 20 mm
    • Weight: 101 g (vs. 240 g of original 2020 extrusion)
    • System: Suitable for the RatRig V-Core 400
      • MGN12 linear rails
      • MGN9 linear rails
    • Material: EN AW 6060 T66
    • Production: Precision CNC milling
    • Surface : (with minimal handling scratches)
      • Raw aluminium
      • Anodized black aluminium (batch 2)
    • Note:
      • Mounting of the linear rail with M3x8mm screws (not included)
      • Prices excl. VAT
      • Made in Austria
    • Shipping Batch 2: 14.04.2023 in Europe
    Ausführung wählen
  • RatRig V-Core X-Gantry 322mm SilverRatRig V-Core X-Gantry 322mm Black
    Ausführung wählen

    X-Gantry 322mm for RatRig V-Core 200

    €35,00 – €49,00 exkl. MwSt.
    • Dimensions: 322 x 20 x 20 mm
    • Accuracy :
      • Length: +- 0.01 mm
      • Thickness: +- 0.02 mm
      • Thread position: +- 0.01 mm
    • Weight: 68 g (vs. 148 g of original 2020 extrusion)
    • System: Suitable for the RatRig V-Core 200
    • Material: EN AW 6060 T66
    • Production: Precision CNC milling
    • Surface : (with minimal handling scratches)
      • Raw aluminium
      • Anodized black aluminium (batch 2)
    • Note:
      • Mounting of the linear rail with 6x M3x8mm screws (not included)
      • Prices excl. VAT
      • Made in Austria
    • Shipping Batch 2: 14.04.2023 in Europe
    Ausführung wählen
  • RatRig V-Core X-Gantry 422mm SilverRatRig V-Core X-Gantry 422mm Black
    Ausführung wählen

    X-Gantry 422mm for RatRig V-Core 300

    €45,00 – €59,00 exkl. MwSt.
    • Dimensions: 422 x 20 x 20 mm
    • Weight: 86 g (vs. 194 g of original 2020 extrusion)
    • System: Suitable for the RatRig V-Core 300
    • Material: EN AW 6060 T66
    • Production: Precision CNC milling
    • Surface : (with minimal handling scratches)
      • Raw aluminium
      • Anodized black aluminium (batch 2)
    • Note:
      • Mounting of the linear rail with M3x8mm screws (not included)
      • Prices excl. VAT
      • Made in Austria
    • Shipping Batch 2: 14.04.2023 in Europe
    Ausführung wählen
